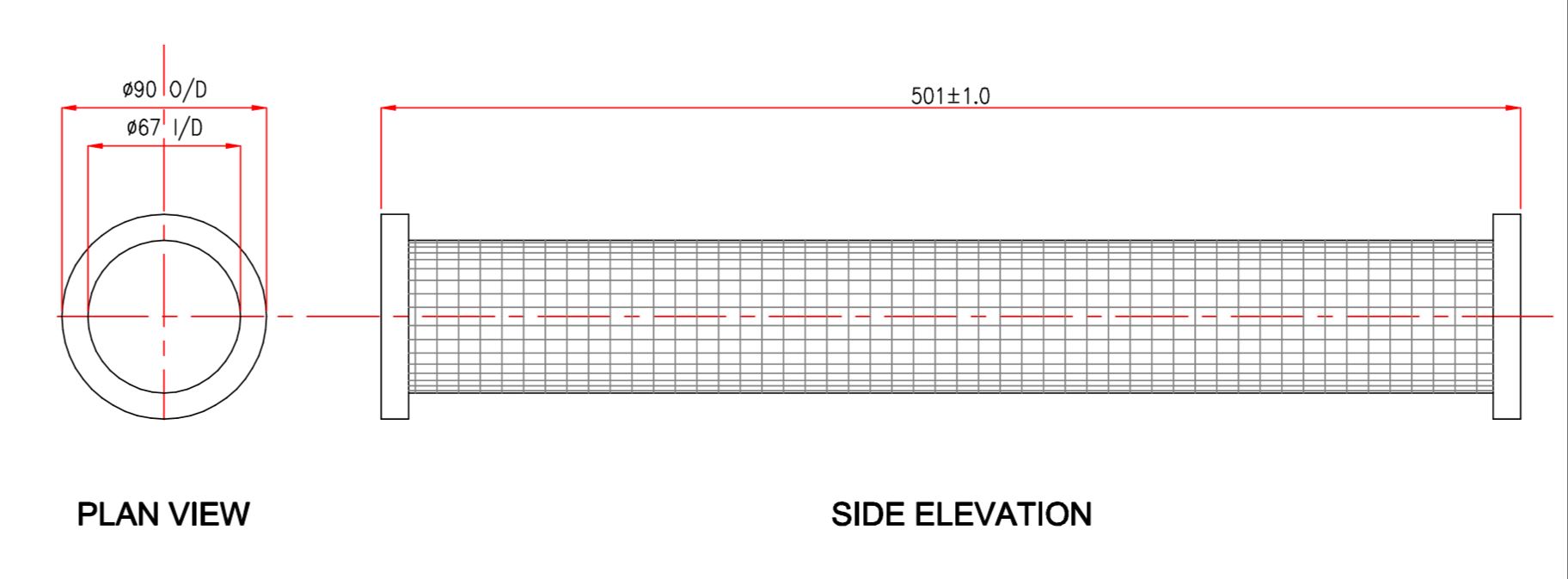

SPECIFICATION FOR FIL.004.13
FLOW RATE :- 300 – 900 m3/hr (176 – 530 cfm)
PRESSURE :- 5 bar (absolute)
TEMPERATURE :- -40˚C to 150˚C Continuous
ELEMENT :-
Pleated construction
Outer mesh :- 40s square mesh 316 stainless steel
Inner mesh :- 80s square mesh 316 stainless steel
Filter media :- 5 micron absolute( 98% 1 µ ) 316 stainless steel (sintered fibre.)
ASSEMBLY :- Welded seam. Epoxy bonded end caps.
TESTING :- Integrity test by bubble point .
