F1-024R Hydraulic Pump

Stock Code: PAR3781024

Parker F1-25 bent axis piston pump, 26cc/rev

£785.00 ex VAT
Back Order

Series F1 is a further development of our well known 'truck pump', the F1. The F1 offers many additional values for operators of cargo cranes, hook loaders, skip loaders, forest cranes, concrete mixers and similar truck applications. Series F1 is a very efficient and straight forward pump design with unsurpassed reliability. Its small envelope size gives a simple and inexpensive installation. 45° bent-axis angle – Optimal inlet port geometry in the end cap – Single housing design - Spherical pistons - high speeds – Laminated piston rings – low leakage – Positive synchronisation with timing gear – Installation above the reservoir level possible – Tolerates low temperatures and high temperature shocks – Shaft end and mounting flange meet the ISO standard for all sizes

Name: File Type: Date Modified:
F1 25-60 2D Drawing PDF Jan 13 2020
F1 25-60 3D drawing Jan 13 2020
F1 F2 by-pass valve installation information PDF Jan 13 2020
F1 fixed displacement pumps downloads PDF Jan 13 2020

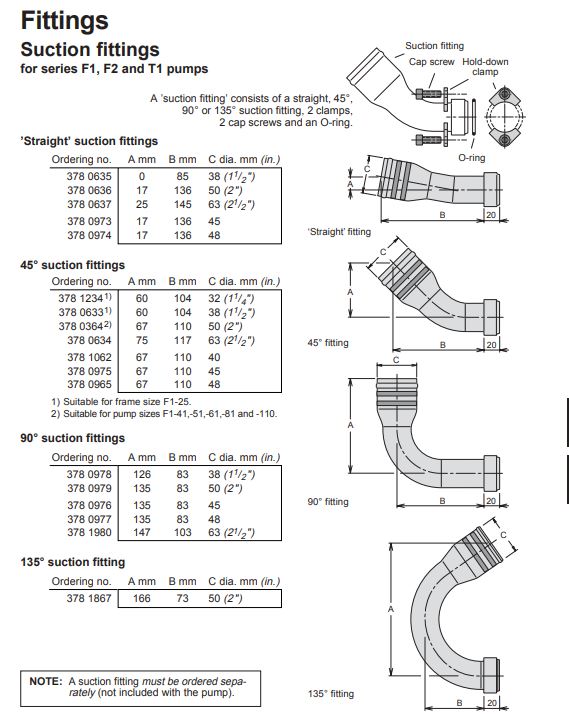

Suction fitting tecnical Jan 13 2020
Truck hydraulics PDF Jan 13 2020
